Ventilation accessories

Ventilation accessories

– ANTI-CONDENSATION HEATERS
– ANTI-CONDENSATION HEATERS FAN
– REPLACEMENT CLOTH FILTER
– MECHANICAL THERMOSTATS
– MECHANIC HUMIDISTAT
– OMEGA ADHESIVE SUPPORT
– PURGE VALVE
– CONDENSATION ABSORBER


VENT325-220-UL

VENT325-220-UL


  • Large fan 230V mq/h 1000 “UL”

WeightVolume Code + N
VENT325-220-UL   Login
VENT325-220/2

VENT325-220/2


  • Large fan 230V mq/h 800

WeightVolume Code + N
VENT325-220/2   Login
VENT325-100-UL

VENT325-100-UL


  • LARGE fan 115V “UL”

WeightVolume Code + N
VENT325-100-UL   Login
VENT325-220

VENT325-220


  • LARGE fan 230V mq/h 1000

WeightVolume Code + N
VENT325-220   Login
VENT325-110

VENT325-110


  • LARGE fan 115V

WeightVolume Code + N
VENT325-110   Login
VENT250-220

VENT250-220


  • MEDIUM fan 230V

WeightVolume Code + N
VENT250-220   Login
VENT250-110

VENT250-110


  • MEDIUM fan115V

WeightVolume Code + N
VENT250-110   Login
VENT150-24AC

VENT150-24AC


  • Small fan 24V-AC

WeightVolume Code + N
VENT150-24AC   Login
VENT150-24DC

VENT150-24DC


  • SMALL fan 24V-DC

WeightVolume Code + N
VENT150-24DC   Login
VENT150-220

VENT150-220


  • SMALL fan 230V

WeightVolume Code + N
VENT150-220   Login
VENT150-110

VENT150-110


  • SMALL fan 115V

WeightVolume Code + N
VENT150-110   Login
GR325

GR325


  • Large front grill for fan protection

WeightVolume Code + N
GR325   Login
GR250

GR250


  • MEDIUM front grill for fan protection

WeightVolume Code + N
GR250   Login
GR150

GR150


  • Griglia di protezione ventola PICCOLA

WeightVolume Code + N
GR150   Login
F3535-UL

F3535-UL


  • Replacement cloth filter: small mesh cloth; it withstands up to 100° C. Contaminated air side: open structure. Clean air side: closed structure. It filters almost every type of dust with a grain size higher than 10 ìm.
  • Filter class: G3 EN779
  • Filtering element:  in polyester fibre, class 1 DIN 53.438
  • Dimensions: LARGE cloth filter H282 x W273 x D8
  • Pack: 1 piece
  • Certification: UL

WeightVolume Code + N
F3535-UL   Login
F2525

F2525


  • Replacement cloth filter: small mesh cloth; it withstands up to 100° C. Contaminated air side: open structure. Clean air side: closed structure. It filters almost every type of dust with a grain size higher than 10 ìm.
  • Filter class: G3 EN779
  • Filtering element:  in polyester fibre, class 1 DIN 53.438
  • Dimensions: MEDIUM cloth filter H214 x W199 x D8
  • Pack: 1 piece
  • Certification: UL

WeightVolume Code + N
F2525   Login
F1515-UL

F1515-UL


  • Replacement cloth filter: small mesh cloth; it withstands up to 100° C. Contaminated air side: open structure. Clean air side: closed structure. It filters almost every type of dust with a grain size higher than 10 ìm.
  • Filter class: G3 EN779
  • Filtering element:  in polyester fibre, class 1 DIN 53.438
  • Dimensions: SMALL cloth filter H114 x W114 x D8
  • Pack: 1 piece
  • Certfication: UL

WeightVolume Code + N
F1515-UL   Login
VR9510

VR9510


  • Omega adhesive support: is an accessories for fixing small devices or 35 mm pre-drilled DIN guide to EN 60715. It is possible to fix devices in a quick and easy way, without drilling. It is an easy way to install devices even in limited spaces or in case of retrofitting. Plastic adhesive element with an high bearing capacity. The industrial adhesive tape remains stable with aging and grants a good level of security.
  • Pack: 5 pieces

WeightVolume Code + N
VR9510   Login
VR3595

VR3595


  • Mechanic humidistat: It measures air humidity in metallic carpentries. Once the pre-fixed humidity value is reached, it turns on the heating system to avoid condensation on electric and electronic components.
  • Hysteresis (relative humidity): 4% RH (tolleranza +-3%)
  • Description: Humidistat 35/95%

(more…)


WeightVolume Code + N
VR3595   Login
VR0602

VR0602

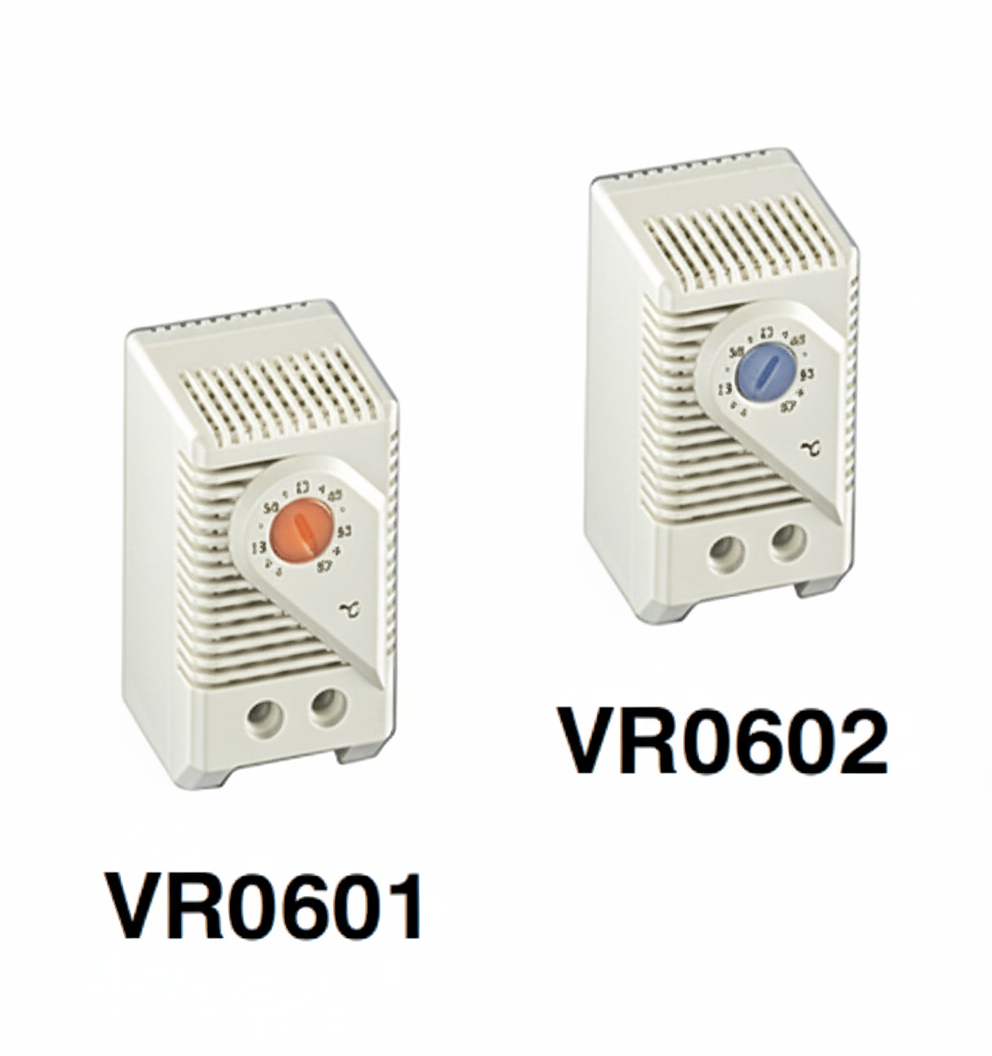

  • Thermostats: Art. VR0601 – NC Contact for heating devices adjustment. Art. VR0602 – NO contact for cooling devices, fans and exchangers adjustment.
  • Switching hysteresis: 5 K (tolerance value +-4K)
  • Description: 2-pin therm. NO

(more…)


WeightVolume Code + N
VR0602   Login
VR0601

VR0601


  • Thermostats: Art. VR0601 – NC Contact for heating devices adjustment. Art. VR0602 – NO contact for cooling devices, fans and exchangers adjustment.
  • Switching hysteresis: 5 K (tolerance value +-4K)
  • Description: 2-pin therm. NC

(more…)


WeightVolume Code + N
VR0601   Login
VR1060

VR1060


  • Mechanical thermostats for fans and signaling elements. Through temperature measurement, the thermostat controls resistive and inductive loads. If the fixed temperature is equal to the higher switching point value, the NC contact opens. If the fixed temperature, hysteresis (and tolerance) deducted, is equal to the lower switching point value, the NC contact closes.
  • Switching hysteresis: 5 K (tolerance value -3/+2 K)
  • Description: 4-pin therm. N/C-N/A

(more…)


WeightVolume Code + N
VR1060   Login
F3535

F3535


  • Replacement cloth filter: small mesh cloth; it withstands up to 100° C. Contaminated air side: open structure. Clean air side: closed structure. It filters almost every type of dust with a grain size higher than 10 ìm.
  • Filter class: G3 EN779
  • Filtering element:  in polyester fibre, class 1 DIN 53.438
  • Dimensions: LARGE cloth filter H282 x W273 x D8
  • Pack: 1 piece

WeightVolume Code + N
F3535   Login
F2525

F2525


  • Replacement cloth filter: small mesh cloth; it withstands up to 100° C. Contaminated air side: open structure. Clean air side: closed structure. It filters almost every type of dust with a grain size higher than 10 ìm.
  • Filter class: G3 EN779
  • Filtering element:  in polyester fibre, class 1 DIN 53.438
  • Dimensions: MEDIUM cloth filter H214 x W199 x D8
  • Pack: 1 piece

WeightVolume Code + N
F2525   Login
F1515

F1515


  • Replacement cloth filter: small mesh cloth; it withstands up to 100° C. Contaminated air side: open structure. Clean air side: closed structure. It filters almost every type of dust with a grain size higher than 10 ìm.
  • Filter class: G3 EN779
  • Filtering element:  in polyester fibre, class 1 DIN 53.438
  • Dimensions: SMALL cloth filter H114 x W114 x D8
  • Pack: 1 piece

WeightVolume Code + N
F1515   Login
VR46400

VR46400


  • Anti-condensation heating fan to prevent excessive cooling. The integrated axial-flow fan guarantees forced air circulation, by uniforming the temperature in the carpentry. Connection with an internal clamp. Provided with a temperature monitoring device for
    overheating protection in case of fan malfunctioning.
  • Rated voltage: 230 V AC 50/60Hz.
  • Description: 400W with fan

(more…)


WeightVolume Code + N
VR46400   Login
VR46250

VR46250


  • Anti-condensation heating fan to prevent excessive cooling. The integrated axial-flow fan guarantees forced air circulation, by uniforming the temperature in the carpentry. Connection with an internal clamp. Provided with a temperature monitoring device for
    overheating protection in case of fan malfunctioning.
  • Rated voltage: 230 V AC 50/60Hz.
  • Description: 250W with fan

(more…)


WeightVolume Code + N
VR46250   Login
VR4730

VR4730


  • SMALL anti-condensation heaters for carpentry thermoregulation
  • Rated voltage: 120-240V AC/DC* (min.110V – max 265V)
  • Description: 30W with cable

(more…)


WeightVolume Code + N
VR4730   Login
VR4720

VR4720


  • SMALL anti-condensation heaters for carpentry thermoregulation
  • Rated voltage: 120-240V AC/DC* (min.110V – max 265V)
  • Description: 20W with cable

(more…)


WeightVolume Code + N
VR4720   Login
VR4710

VR4710


  • SMALL anti-condensation heaters for carpentry thermoregulation
  • Rated voltage: 120-240V AC/DC* (min.110V – max 265V)
  • Description: 10W with cable

(more…)


WeightVolume Code + N
VR4710   Login
VR14150

VR14150


  • Anti-condensation heaters: for carpentry thermoregulation. The aluminium-profile structure generates a draught effect which allows a uniform distribution of temperature in the carpentry. Heaters are designed for permanent operation.
  • Rated voltage: 120-240V AC/DC* (min.110V – max 265V)
  • Description: 150W

(more…)


WeightVolume Code + N
VR14150   Login
VR14100

VR14100


  • Anti-condensation heaters: for carpentry thermoregulation. The aluminium-profile structure generates a draught effect which allows a uniform distribution of temperature in the carpentry. Heaters are designed for permanent operation.
  • Rated voltage: 120-240V AC/DC* (min.110V – max 265V)
  • Description: 100W

(more…)


WeightVolume Code + N
VR14100   Login
VR1475

VR1475


  • Anti-condensation heaters: for carpentry thermoregulation. The aluminium-profile structure generates a draught effect which allows a uniform distribution of temperature in the carpentry. Heaters are designed for permanent operation.
  • Rated voltage: 120-240V AC/DC* (min.110V – max 265V)
  • Description: 75W

(more…)


WeightVolume Code + N
VR1475   Login
VR1445

VR1445


  • Anti-condensation heaters: for carpentry thermoregulation. The aluminium-profile structure generates a draught effect which allows a uniform distribution of temperature in the carpentry. Heaters are designed for permanent operation.
  • Rated voltage: 120-240V AC/DC* (min.110V – max 265V)
  • Description: 45W

(more…)


WeightVolume Code + N
VR1445   Login
VR1430

VR1430


  • Anti-condensation heaters: for carpentry thermoregulation. The aluminium-profile structure generates a draught effect which allows a uniform distribution of temperature in the carpentry. Heaters are designed for permanent operation.
  • Rated voltage: 120-240V AC/DC* (min.110V – max 265V)
  • Description: 30W

(more…)


WeightVolume Code + N
VR1430   Login
VR1415

VR1415


  • Anti-condensation heaters: for carpentry thermoregulation. The aluminium-profile structure generates a draught effect which allows a uniform distribution of temperature in the carpentry. Heaters are designed for permanent operation.
  • Rated voltage: 120-240V AC/DC* (min.110V – max 265V)
  • Description: 15W

(more…)


WeightVolume Code + N
VR1415   Login
VR2020

VR2020


  • Condensation absorber
  • Description: threaded joint for drainage Dim. Ø 60x50mm (WxH). Protection Level IP66 EN 60 529
  • Pack: 1 piece

WeightVolume Code + N
VR2020   Login
VR2010

VR2010


  • Purge valve
  • Description: Purge valve: threaded joint for pressure compensation Dim. Ø 60x37mm (WxH). Protection Level IP66 EN 60 529
  • Pack: 2 pieces

WeightVolume Code + N
VR2010   Login


Download the Zanardo accessories PDF

Zanardo accessories PDF
