S/S Panels and Doors

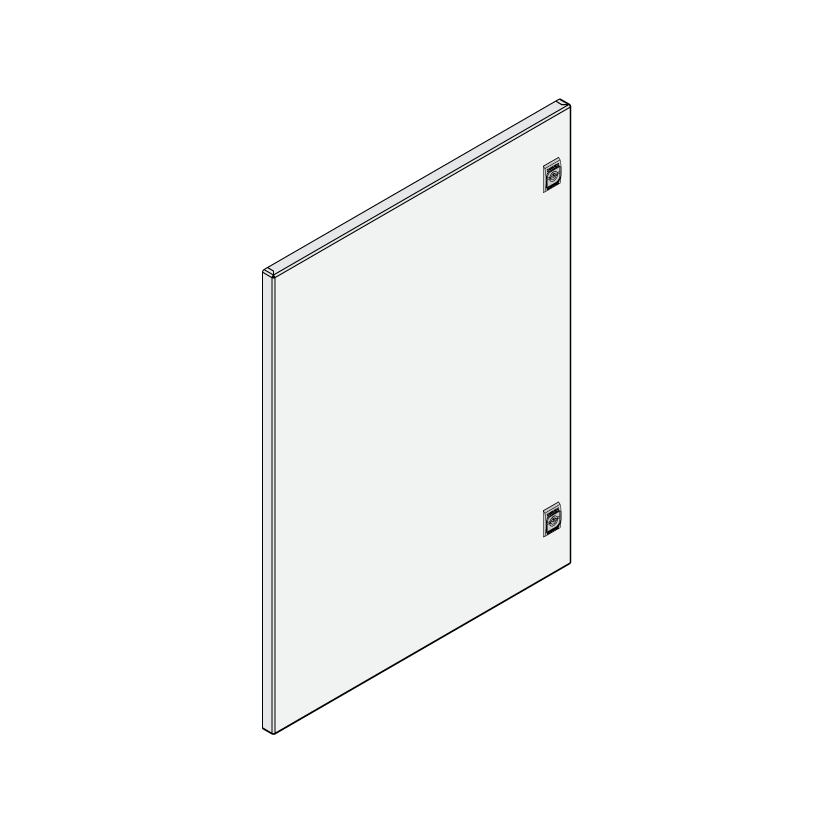

S/S Front solid door for boxes and consoles (spare parts)

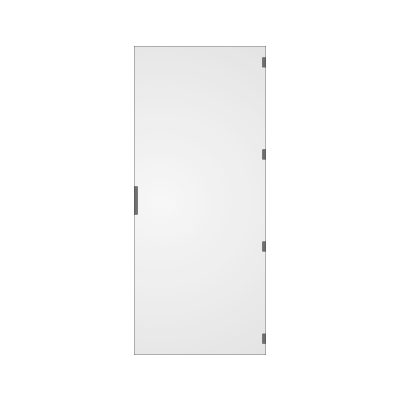

Front solid door for cabinets

Front solid hinged door with lock for DRC-A/VFR-A: with 4 external die-cast hinges (each door) and Zanardo standard lock with 3 mm double-comb key, driven bolt posts with 4 point locking system. For W1200-1400-1600 mm and H1400-1600-1800-2000-2200 mm cabinets.

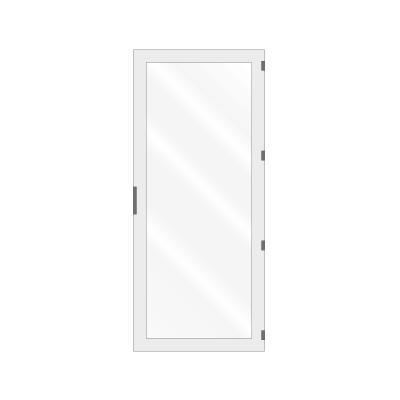

Front transparent door for cabinets

Front transparent hinged door with lock for DRC-A/VFR-A: with 4 external die-cast hinges (each door) and Zanardo standard lock with 3 mm double-comb key, driven bolt posts with 4 point locking system, 4mm safety glass, completely paste. For W1200-1400-1600 mm and H1400-1600-1800-2000-2200 mm cabinets.

Lower door for DRC-LAN H645 x W600

Lower door for DRC-LAN H845 x W600

Lower door for DRC-LAN-A H1045 x W600

S/S Front transparent door for boxes (spare parts)

S/S Front transparent door for boxes (spare parts)

S/S Internal door for boxes (Spare parts)

Tool-carrier internal door for cabinets

Tool-carrier internal door for DRC-A/VFR-A: to be installed inside the cabinet with a perimetral frame provided with hinges and 2 locks with 3 mm double-comb key. To be installed 70 mm from internal door for the installation of switches and tools. For W1200-1400-1600 cabinets, internal doors are provided in 2 hinged parts, as external doors.

Upper door with screen-printed glass for LAN 19” H645 x W600

Central door for DRC-LAN

Fold down central door for DRC-LAN

Sliding central drawer for DRC-LAN

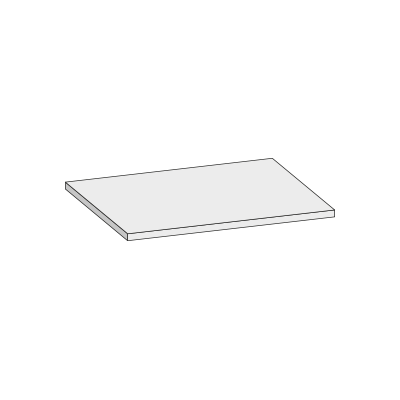

S/S screwed cover for ES boxes

S/S screwed cover for ES boxes

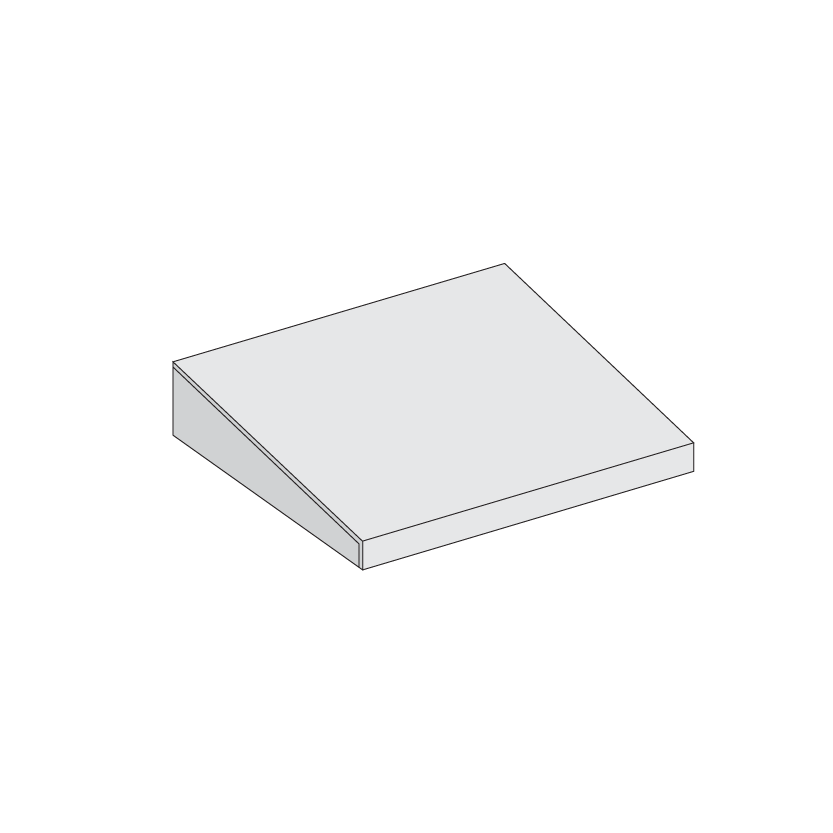

Sloping cover for LVD93- A (spare part)

S/S Pair of Side panel for DRC-LAN-I H1773xD550

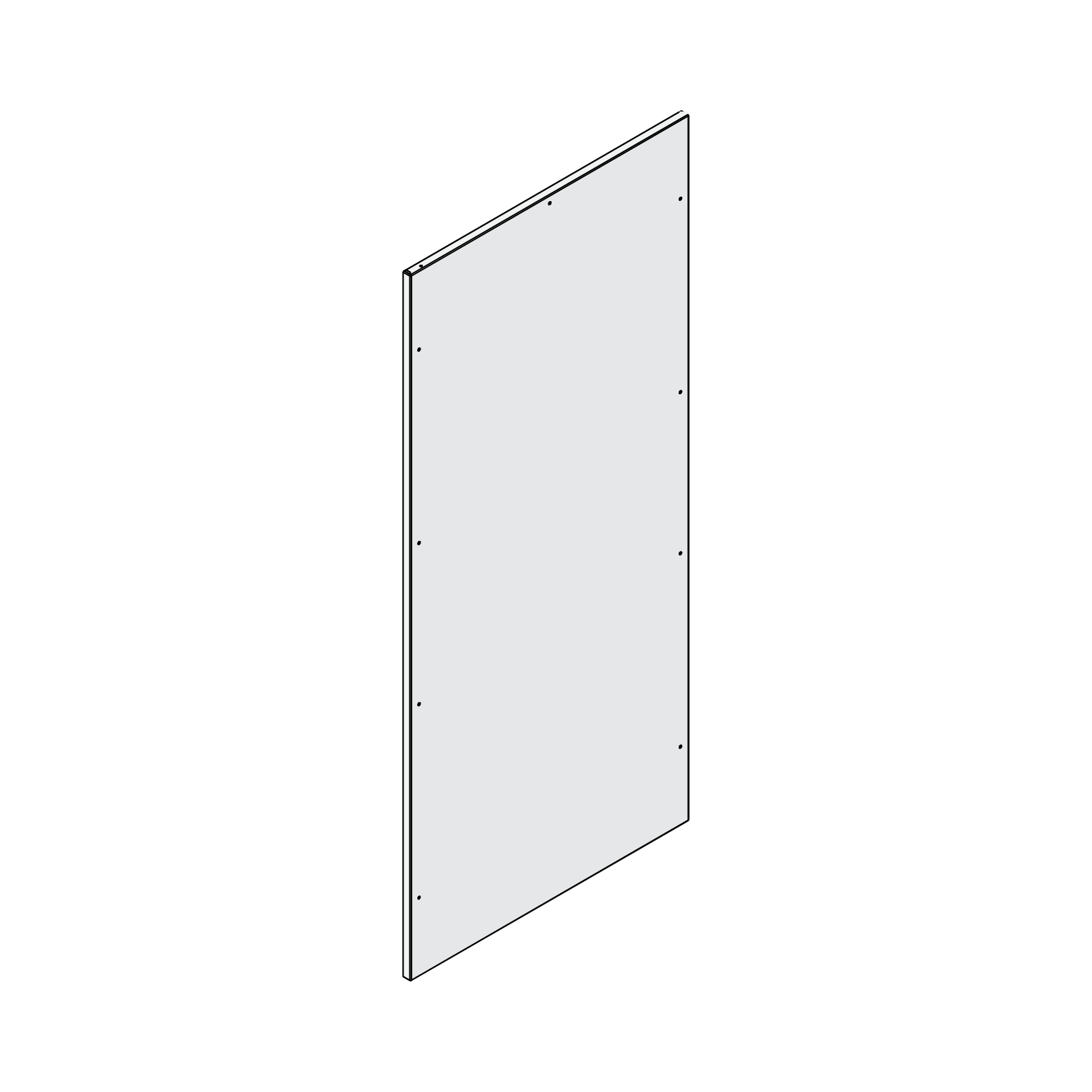

Single side panel for cabinets

Side panels pair for cabinets

Side panels pair for DRC-A: to close laterally cabinets with 8 M6 screws and specific cage nuts to be insert on cabinets lateral structure.

Upper desk for LVD93-A (spare parts)

Screwed panel for LV-A top plate and intermediate desk (spare part)

Upper panel for LM-A and LVE-A desck (Spare part)

internal cable plate for front-installation for cabinets

DRC-KA-EC-VFR-KM/KQ internal cable plate for front-installation: with nylon guide to ease front installation for cabinets, adjustable in depth every 25 mm, except for KM/KQ cabinets, in which it is fixed on the bottom. It is single for W600-800-1000-1200 mm cabinets and in 2 parts for W1400-1600 mm cabinets.

internal cable plate for side-installation for cabinets

DRC-KA-EC internal cable plate for side-installation: with upper and lower guides to ease lateral installation in cabinets. It is single for W600-800-1000-1200 mm cabinets and in 2 parts for W1400-1600 mm cabinets. COME TO VISIT OUR ASSEMBLY VIDEO OF SIDE-INSTALLATION INTERNAL PLATE http://www.zanardo.com/video2/index.html

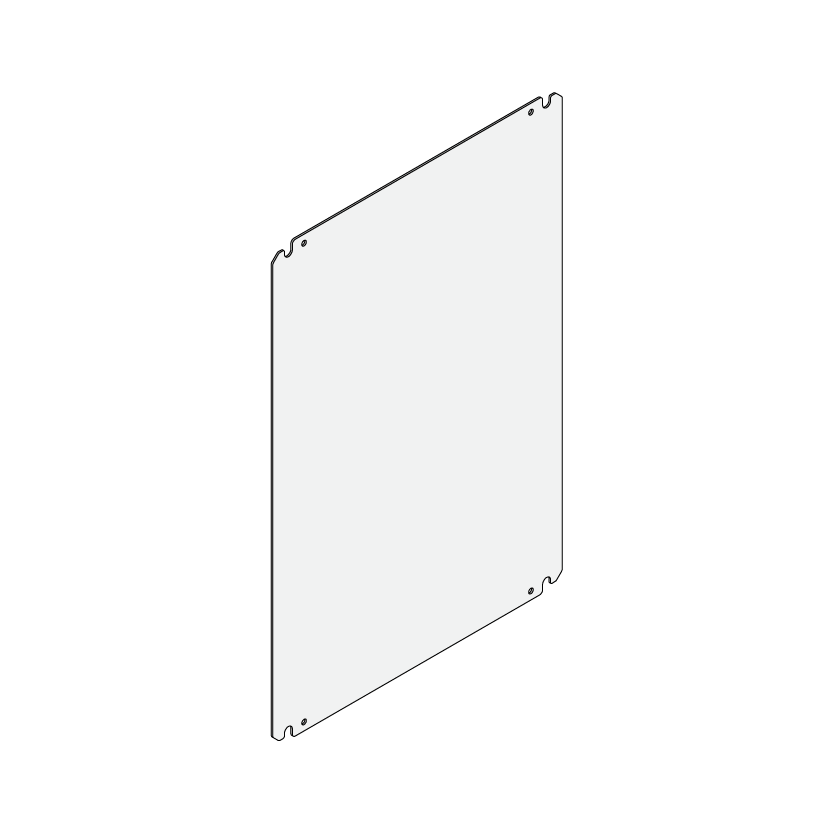

S/S Internal plate for boxes and consoles (spare parts)

S/S Internal plate for boxes and consoles (spare parts)

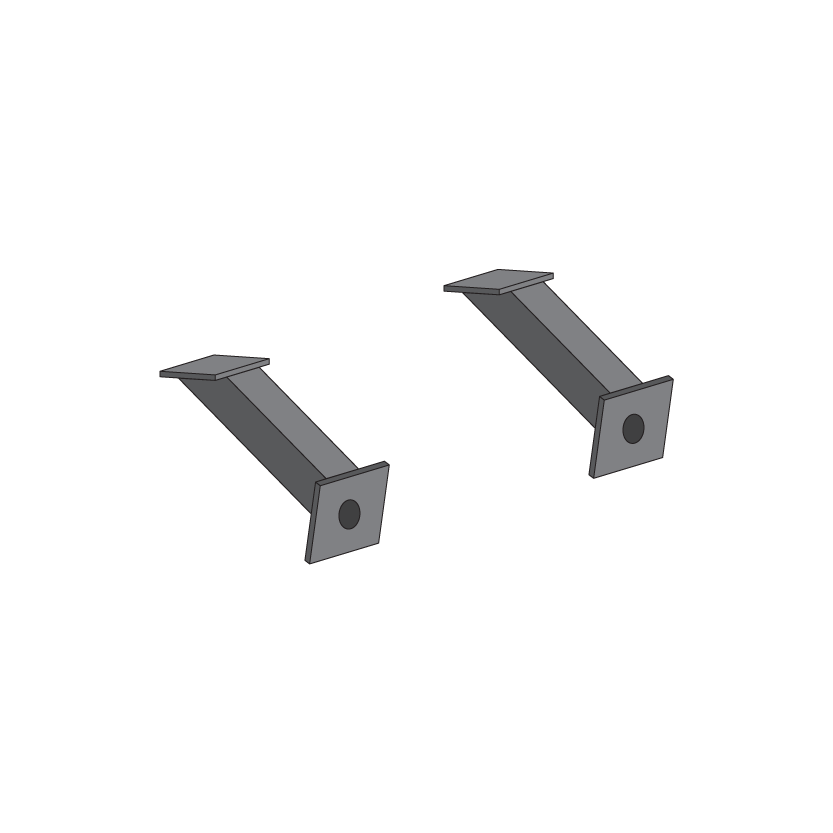

Tubular fittings for LVE-A (spare part)

Screwed back panel for LV-A desk cabinet (spare parts)

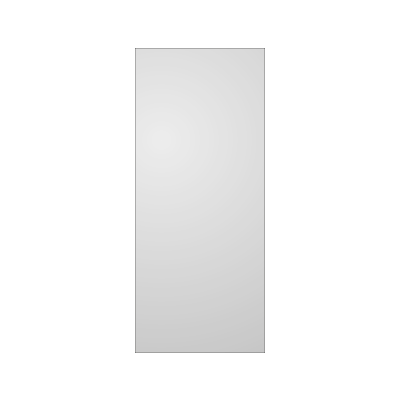

Back panel for cabinets

Retro avvitato per DRC-VFR: avvitato alla struttura mediante viti M6 su blocchetti in zama. Singolo per armadi L400-600-800-1000-1200 mm e in 2 parti per armadi L1400-1600 mm. (1400+600+800 - 1600 - 800+800) con montante centrale avvitato.

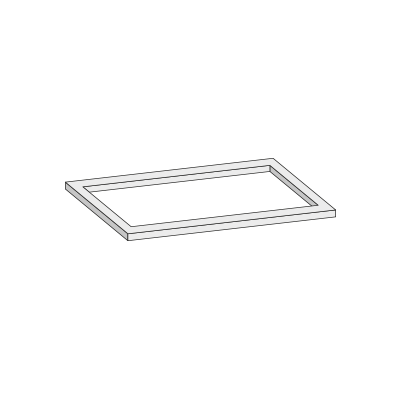

LV-A VERTICAL TOP FRAME

Top lock for LV lower base/vertical top plate

Top lock for LV-A intermediate shelf

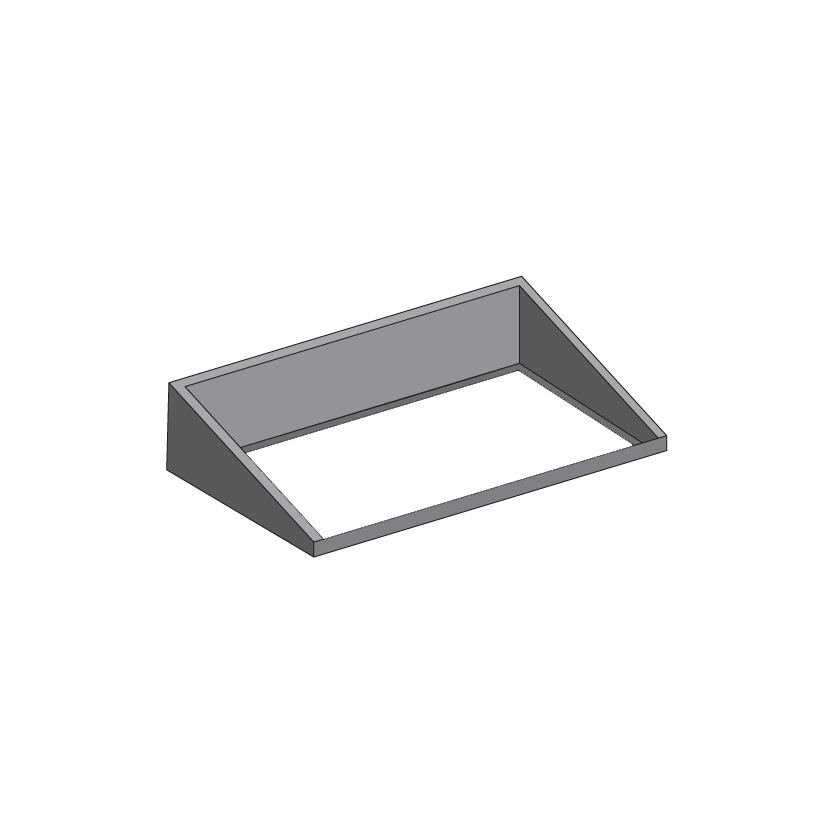

Intermediate part for LVE-A sloping console (spare part)
