S/S Plinths and Bases
-
Mobile base for DRC-LAN-2I h1025 cabinets with wheels
Mobile base for LAN2 cabinets: to be installed under DRC-LAN2 case; fitted for cable transit, to ease the handling and the use of pc-carrier.
-

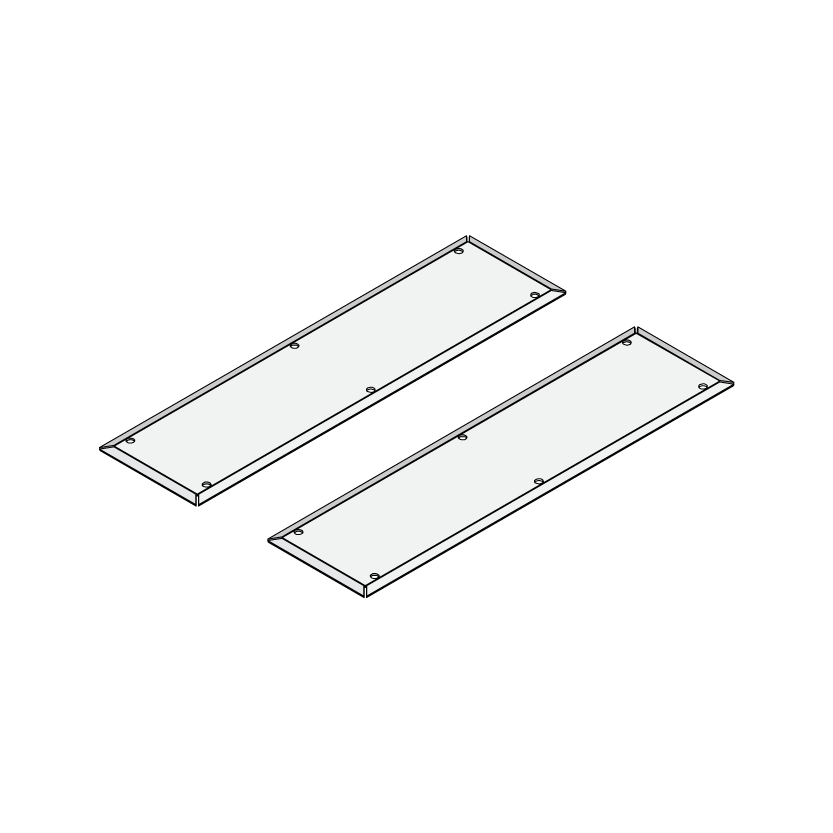

Sides flange pair for H200 mm grommeth plinth
Sides flange pair for H200 mm grommeth plinth in AISI 304 stainless steel.
-
FLANGE PAIR FOR H100 mm SINGLE PLINTH (SPARE PARTS)
-
FLANGE PAIR FOR H200 mm SINGLE PLINTH (SPARE PARTS)
-

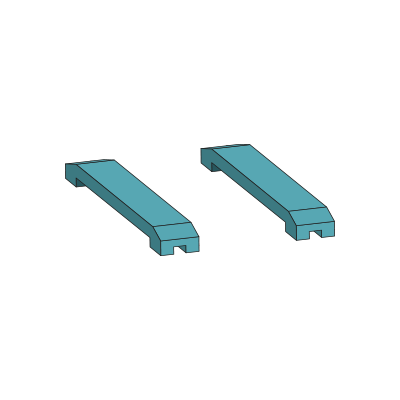

Stabilizers support pair
Coppia sostegni stabilizzatori per DRC-KA-EC-VFR-KM/KQ: da applicare con o senza zoccolo sotto gli armadi, garantendo una maggiore stabilità per la movimentazione.
-

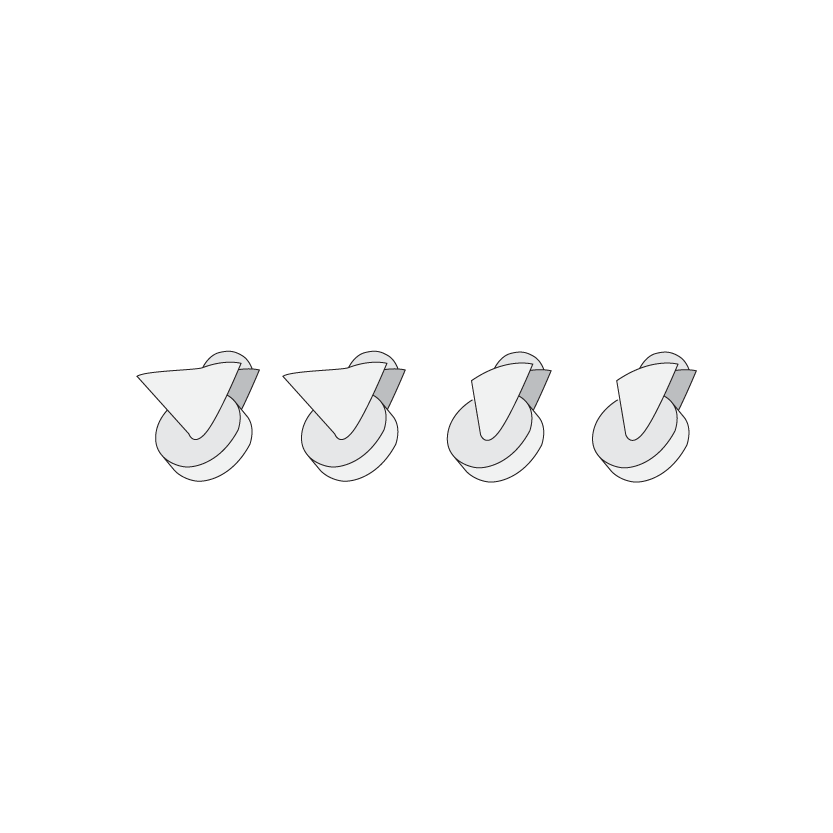

M12 WHEELS SET (WITHOUT PLINTH)
-
Wheels set for stabilizers
-
M12 Levelling feet (for cabinets with no plinth)
M12 levelling feet: to be fixed directly on board structure (without plinth).
-

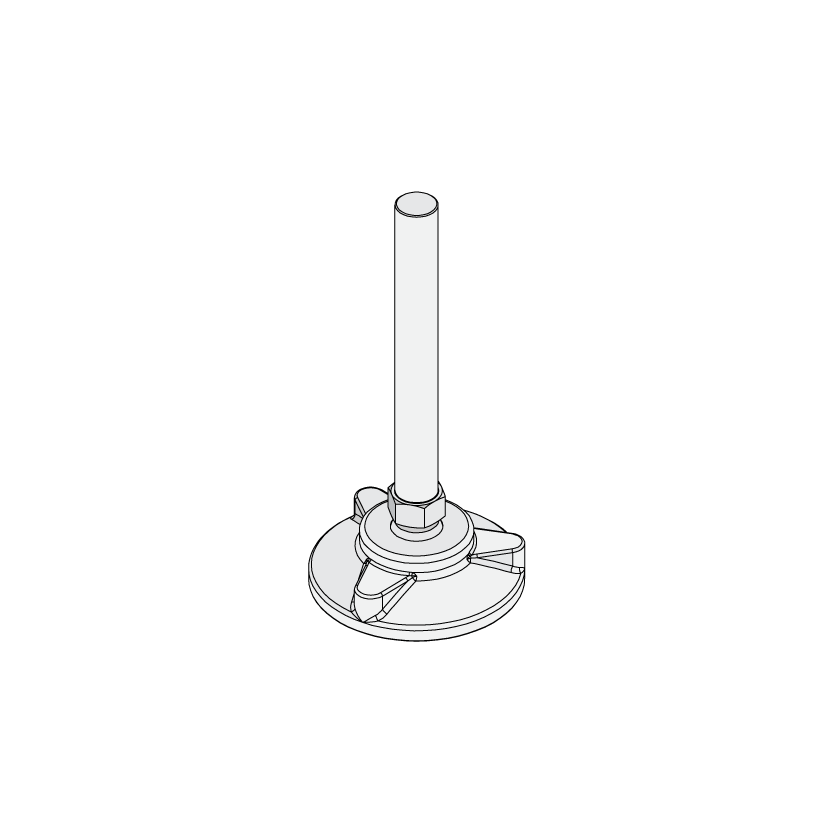

Levelling feet M16 for grommets plinths
Levelling feet M16 for grommets plinths: to be installed under the plinths, they compensate differences on supporting surfaces of carpentries; the ease the cleaning of pavement. TO COMBINE WITH THREADED PLUGS DRC872A.
-

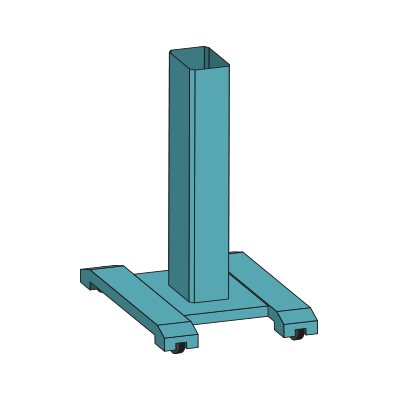

Pedestal for DRC-LAN-2I base with castors H990
-

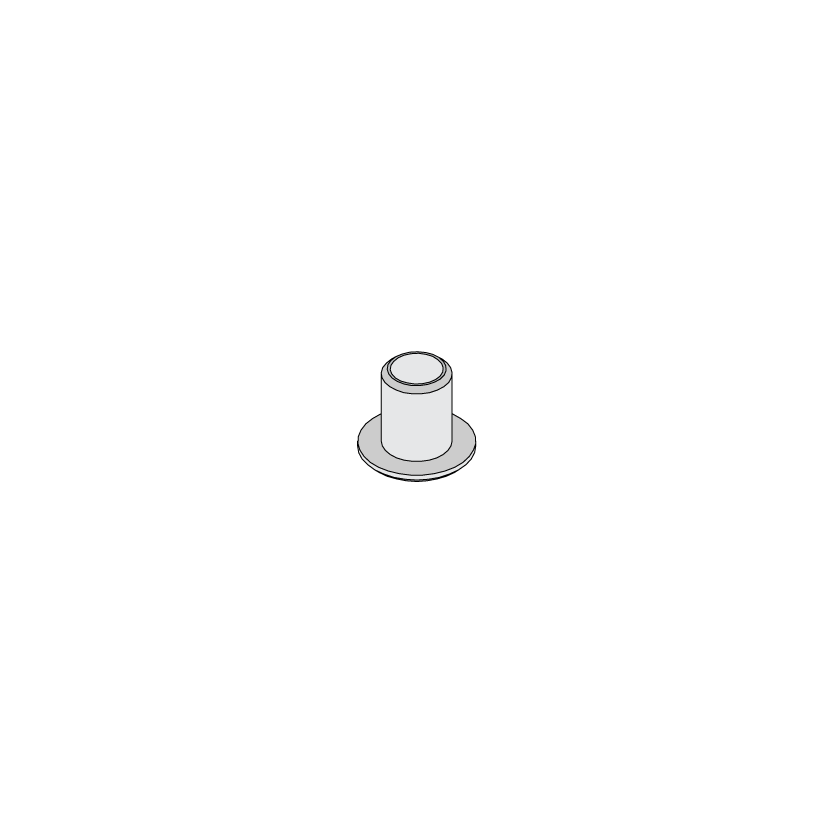

M12 Nylon plugs (for cabinets with no plinth)
Nylon plugs with threaded insert, for 40x40 tube. TO COMBINE WITH DRC670 LEVELLING FEET.
-

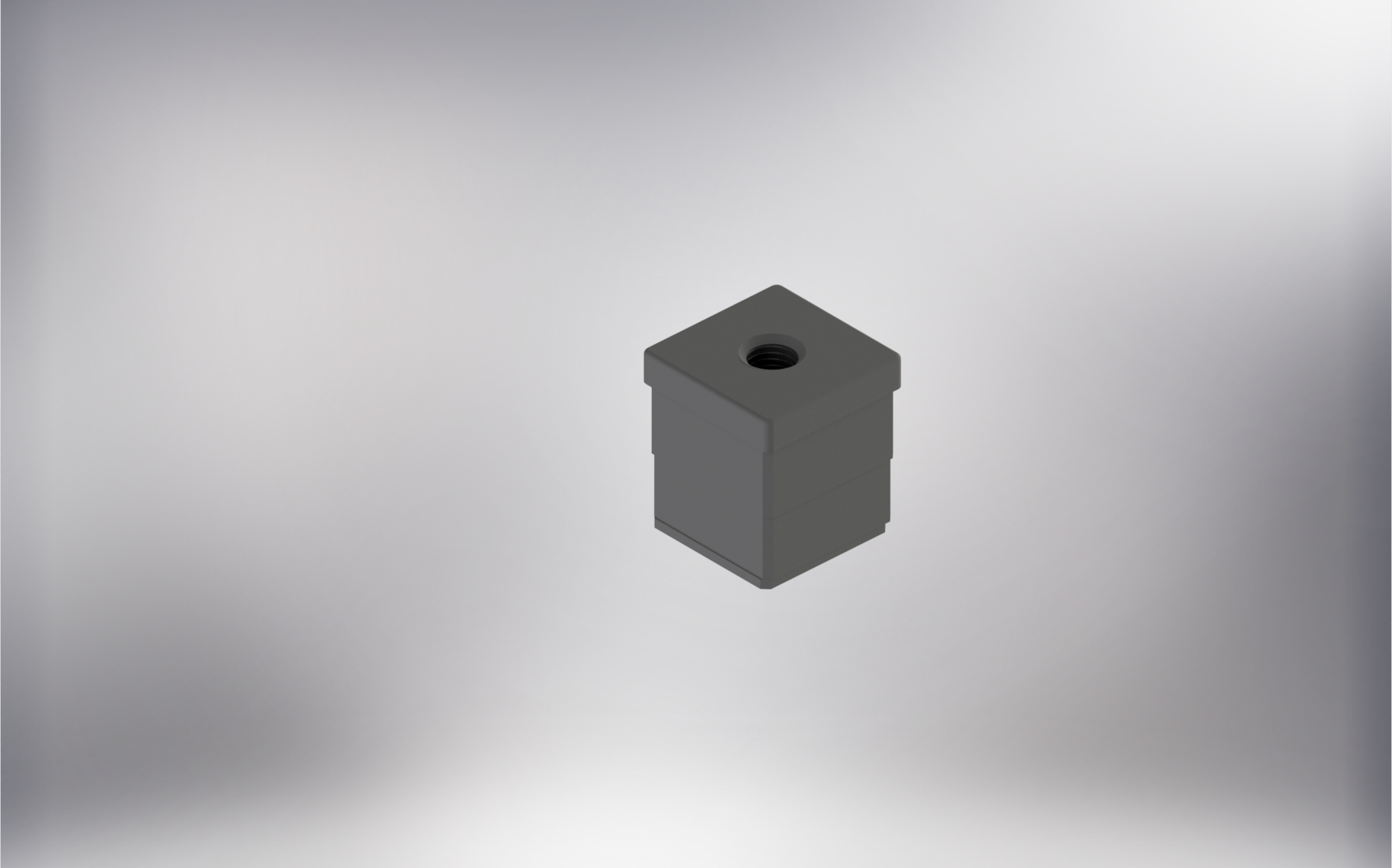

M16 Threaded plugs for grommeth plinth
M16 nylon plusgs with threades insert, for 40x40 tube. It includes: 4 PIECES; M16 THREADING – to combine with DRC671A feet
-
S/S H100 modular plinths
H100 modular plinths for cabinets and control consoles: to easy the insert of cables from the bottom of the cabinet. H100 mm plinth: 4 angles fixed on structure and 4 flanges fixed on the perimeter.
-
S/S H200 modular plinths
H200 modular plinths for cabinets and control consoles: to easy the insert of cables from the bottom of the cabinet. H200 mm plinth: 4 angles fixed on structure and 8 flanges fixed on the perimeter, to ease cables transit in in-line cabinets.
-
H200 mm grommets plinth
H200 mm grommets plinth for DRC-VFR: with close bottom and openable side panels for cable transit. Welded internal tubes allow the installation of levelling feet (by separated ordering with M16 threaded plugs).
-

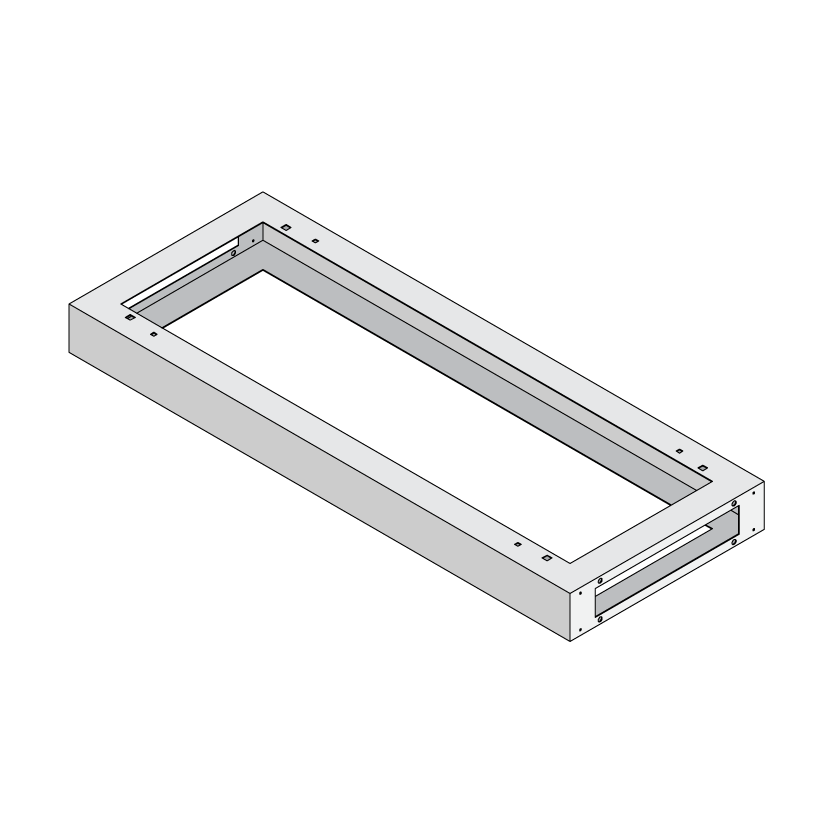

H100 mm single welded plinth
H100 mm single welded plinth for DRC: with removable lateral flanges, open bottom (closed bottom on request), for in-line cabinets, to provide more rigidity for structure. According to cabinet structure, it is realised on request.
-

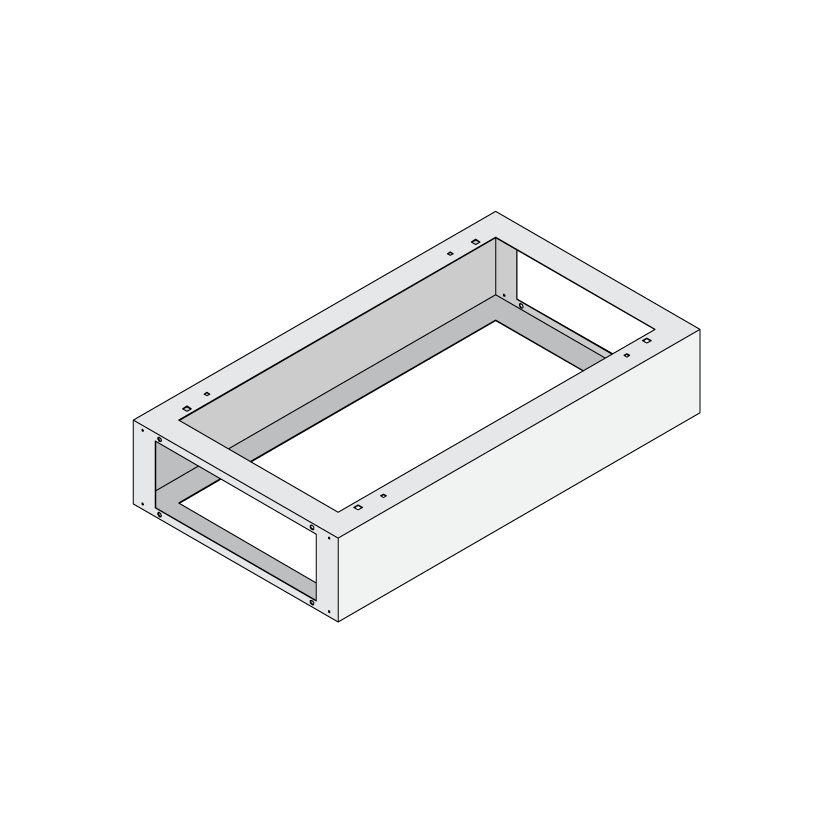

H200 mm single welded plinth
H200 mm single welded plinth for DRC: with removable lateral flanges, open bottom (closed bottom on request), for in-line cabinets, to provide more rigidity for structure. According to cabinet structure, it is realised on request.
