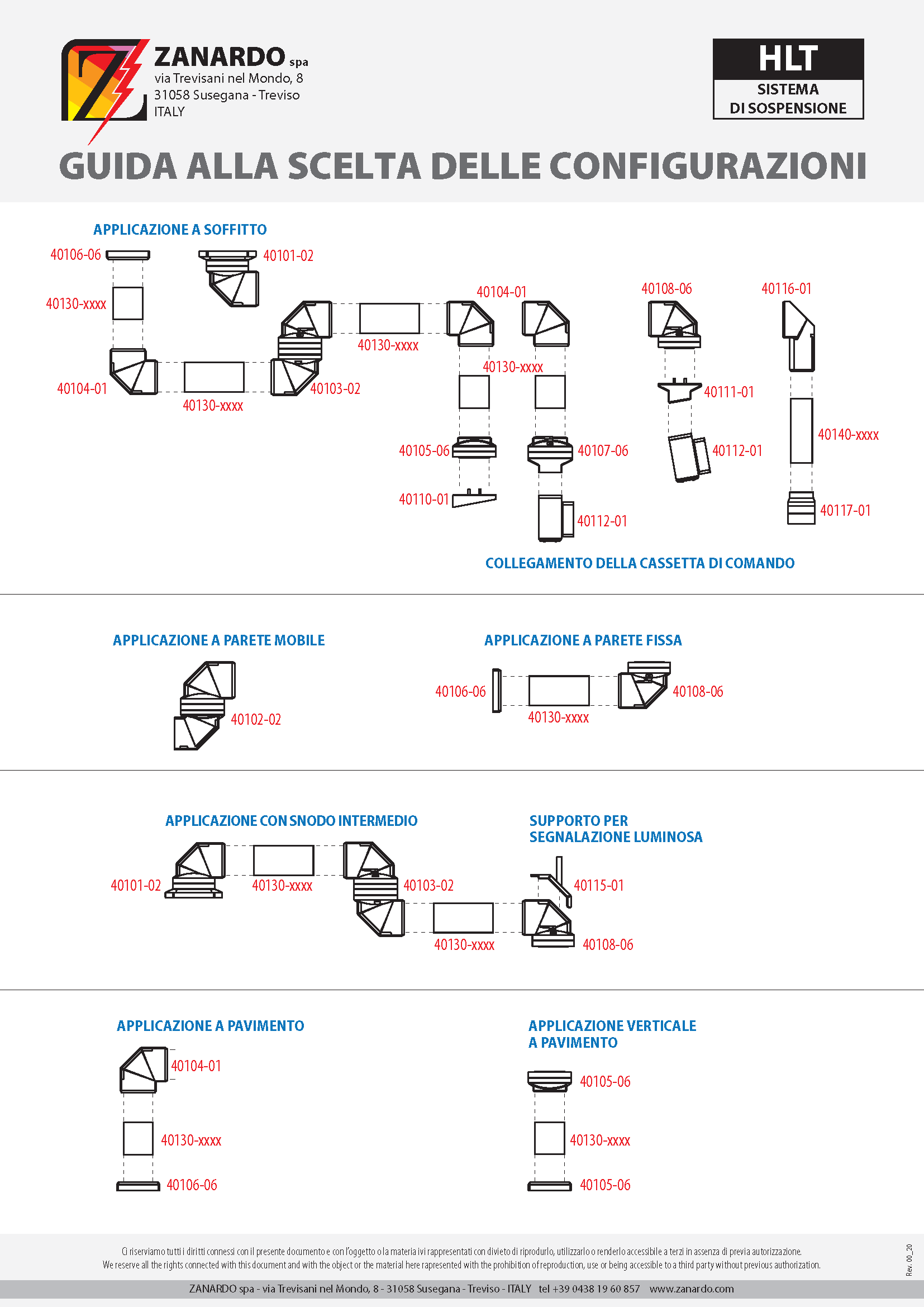

HLT:
A complete range of accessories that guarantees the best results for control units in man/automatic machines interaction, thanks to the design and the functionality of components. It is possible to add assisted suspension systems and customised systems depending on components weight.

NB To combine with D93-DPH, D93-DCF,D93-DFF control cases, aluminium cases and VESA equipment.

Painting:
Thermosetting powders.

Material:
Aluminium

Standard colours:
RAL7016 (connectors) RAL7035 (tubes)

Technical data subject to change without notice

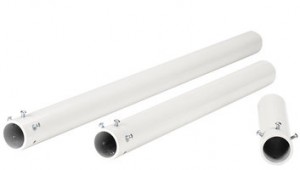

40140-0750

40140-0750


Ø48 TUBE

LENGTH 750 mm

Circular-section tubes for vertical installation.
Easily adaptable to requested length.

Material:
Aluminium

Colour:
RAL7016 (anthracite grey)

Weight:
Approx 1,6 Kg/mt.


WeightVolume Code + N
1,6 Kg40140-0750   Login
40140-0500

40140-0500


Ø48 TUBE

LENGTH 500 mm

Circular-section tubes for vertical installation.
Easily adaptable to requested length.

Material:
Aluminium

Colour:
RAL7016 (anthracite grey)

Weight:
Approx 1,6 Kg/mt.


WeightVolume Code + N
1,6 Kg40140-0500   Login
40140-0250

40140-0250


Ø48 TUBE

LENGTH 250 mm

Circular-section tubes for vertical installation.
Easily adaptable to requested length.

Material:
Aluminium

Colour:
RAL7016 (anthracite grey)

Weight:
Approx 1,6 Kg/mt.


WeightVolume Code + N
1,6 Kg40140-0250   Login
40130-2000

40130-2000

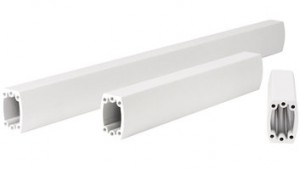

H85 x W62 mm TUBE

LENGTH 2000 mm

HLT profile for horizontal and vertical applications.
Easily adaptable to requested length.

Material:
Aluminium

Colour:
RAL7016 (anthracite grey)

Weight:
Approx 6,0 Kg/mt.


WeightVolume Code + N
6,0 Kg40130-2000   Login
40130-1000

40130-1000


H85 x W62 mm TUBE

LENGTH 1000 mm

HLT profile for horizontal and vertical applications.
Easily adaptable to requested length.

Material:
Aluminium

Colour:
RAL7016 (anthracite grey)

Weight:
Approx 6,0 Kg/mt.


WeightVolume Code + N
6,0 Kg40130-1000   Login
40130-0500

40130-0500


H85 x W62 mm TUBE

LENGTH 500 mm

HLT profile for horizontal and vertical applications.
Easily adaptable to requested length.

Material:
Aluminium

Colour:
RAL7016 (anthracite grey)

Weight:
Approx 6,0 Kg/mt.


WeightVolume Code + N
6,0 Kg40130-0500   Login
40130-0250

40130-0250


H85 x W62 mm TUBE

LENGTH 250 mm

HLT profile for horizontal and vertical applications.
Easily adaptable to requested length.

Material:
Aluminium

Colour:
RAL7016 (anthracite grey)

Weight:
Approx 6,0 Kg/mt.


WeightVolume Code + N
6,0 Kg40130-0250   Login
40190-02

40190-02

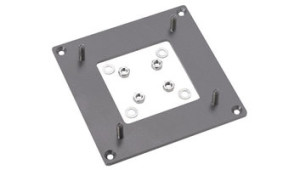

VESA®  100 adaptor plate

For fixed connection with VESA® 100 monitors and VESA® adaptors.

Material:
Aluminium

Colour:
RAL7016 (anthracite grey)

Weight:
Approx 0,1 Kg.


WeightVolume Code + N
0,1 Kg40190-02   Login
40190-01

40190-01


Cable protection plate

To protect control box connection electric cables. Suitable for al connectors types.

Material:
Aluminium

Colour:
RAL7016 (anthracite grey)

Weight:
Approx 0,1 Kg.


WeightVolume Code + N
0,1 Kg40190-01   Login

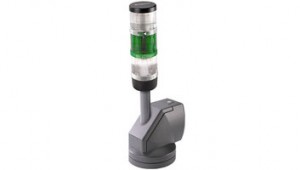

40115-01

40115-01


Light adaptor

For light-signalling columns with a 25 mm connector to: – Upper connector – Wall connector
- Intermediate connector – Curves
- 90° connector (normal with reduced flange)

Material:
Aluminium

Colour:
RAL7016 (anthracite grey)

Weight:
Approx 0,6 Kg.


WeightVolume Code + N
0,6 Kg40115-01   Login

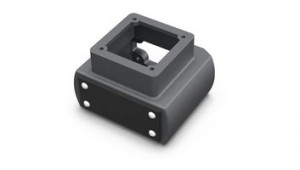

40112-01

40112-01


Enclosure adaptor VESA

Connection to HLT suspension system. Degree of protection IP54 (on request). VESA® 75 or 100 standardisation (optionally). Cable exit on both side (on request).

Material:
Aluminium

Colour:
RAL7016 (anthracite grey)

Weight:
Approx 1,2 Kg.


WeightVolume Code + N
1,2 Kg40112-01   Login
40117-01

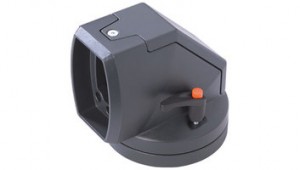

40117-01

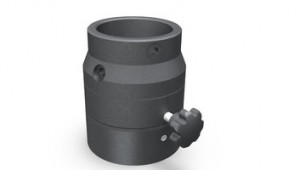

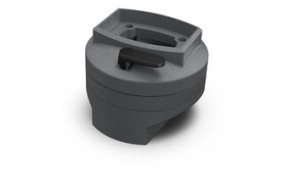

Coupling 48

To connect a Ø48 mm vertical tube to control boxes at a 250° interval.
Anti-fall protection system is included.
Max permissible load: 50 kg.

Material:
Aluminium

Colour:
RAL7016 (anthracite grey)

Weight:
Approx 0,7 Kg.




WeightVolume Code + N
0,7 Kg40117-01   Login
40116-01

40116-01

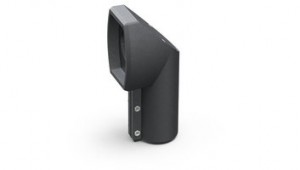

Elbow adaptor 48

To connect a HLT horizontal profile and a Ø48 vertical tube.
Anti-fall protection system is included.

Material:
Aluminium

Colour:
RAL7016 (anthracite grey)

Weight:
Approx 0,8 Kg.

Characteristics:
Removable cover for installation


WeightVolume Code + N
0,8 Kg40116-01   Login
40121-01

40121-01

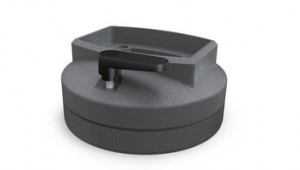

Rotofix

For on-desk application with control boxes.

Material:
Aluminium

Colour:
RAL7016 (anthracite grey)

Weight:
Approx 2,0 Kg.

Characteristics:
With rotation limiter


WeightVolume Code + N
2,0 Kg40121-01   Login
40119-01

40119-01

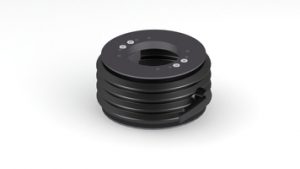

Tilt adaptor

8° interval adjustable tilt adaptor, between 0° and 32° for boxes and connectors.
Max permissible load: 25kg.

Material:
Aluminium

Colour:
RAL7016 (anthracite grey)

Weight:
Approx 1,0 Kg.

Characteristics:
With bellows sheath


WeightVolume Code + N
1,0 Kg40119-01   Login
40111-01

40111-01

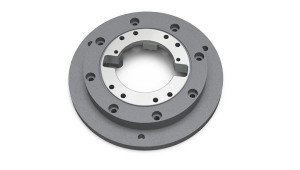

Tilt adaptor SF 10°

For the 10° tilt of the connector with reduced-depth control boxes (small flange).

Material:
Aluminium

Colour:
RAL7016 (anthracite grey)

Weight:
Approx 0,5 Kg.


WeightVolume Code + N
0,5 Kg40111-01   Login
40110-01

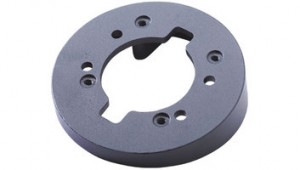

40110-01

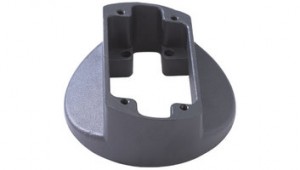

Tilt adaptor 10°

For the 10° tilt of the connector with control boxes.

Material:
Aluminium

Colour:
RAL7016 (anthracite grey)

Weight:
Approx 0,3 Kg.


WeightVolume Code + N
0,3 Kg40110-01   Login
40109-06000-17016

40109-06000-17016


Elbow coupling SF

To connect a HLT profile to reduced-depth control 25 boxes (small flange).
Swivelling interval 170°/170°.
90°/90° swivelling interval restriction with screws. Installation on bottom base is possible.

Material:
Aluminium

Colour:
RAL7016 (anthracite grey)

Weight:
Approx 2,8 Kg.

Characteristics:
Removable cover for installation


WeightVolume Code + N
2,8 Kg40109-06000-17016   Login
40107-06000-17016

40107-06000-17016


Coupling SF

To connect a HLT ptofile to reduced-depth control
boxes (small flange).
 90°/90° swivelling interval restriction with screws. Swivelling interval 170°/170°.

Material:
Aluminium

Colour:
RAL7016 (anthracite grey)

Weight:
Approx 1,9 Kg.


WeightVolume Code + N
1,9 Kg40107-06000-17016   Login

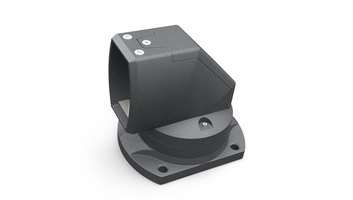

40108-06000-17016

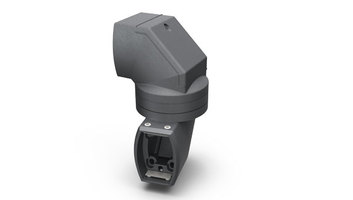

40108-06000-17016


Elbow coupling

To connect a HLT profile to a control box and make them swivelling with screws at 90° intervals (factory settings 170°/170°).
Installation on bottom base is possible.

Material:
Aluminium

Colour:
RAL7016 (anthracite grey)

Weight:
Approx 2,4 Kg.

Characteristics:
Removable cover for installation


WeightVolume Code + N
2,4 Kg40108-06000-17016   Login
40106-01

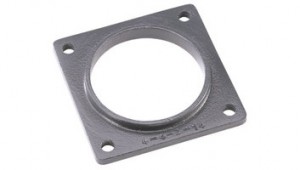

40106-01


Base/Wall flange

To connect a HLT profile to horizontal or vertical
surfaces.
Tilt adjustment with screws according to load.

Material:
Aluminium

Colour:
RAL7016 (anthracite grey)

Weight:
Approx 0,6 Kg.


WeightVolume Code + N
0,6 Kg40106-01   Login

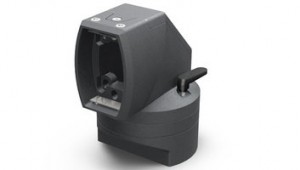

40105-06000-17016

40105-06000-17016


Coupling to connect a HLT profile to a control box and make them swivelling with screws at 90° intervals (factory settings 170°/170°).

Material: Aluminium

Colour: RAL7016 (anthracite grey)

Weight: Approx 1,5 Kg.


WeightVolume Code + N
1,5 Kg40105-06000-17016   Login
40125-02

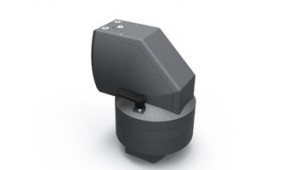

40125-02


Rotating elbow to connect two profiles (horizontal and vertical) and to make them swivelling at 30° intervals (factory settings 170°/170°). 50% limited loading capacity. Dim. max: H1000 W1000 mm. Connect the bottom part to the profile and fix it to the top.

Material: Aluminium

Colour: RAL7016 (anthracite grey)

Weight: Approx 2,8 Kg.

Characteristics: Removable cover for installation


WeightVolume Code + N
2,8 Kg40125-02   Login
40104-01

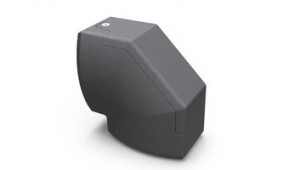

40104-01


Elbow to connect two profiles (horizontal and vertical).

Material:
Aluminium

Colour:
RAL7016 (anthracite grey)

Weight:
Approx 1,4 Kg.

Characteristics:
Removable cover for installation


WeightVolume Code + N
1,4 Kg40104-01   Login

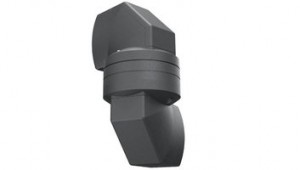

40103-02

40103-02


Intermediate joint

To connect two horizontal profiles and to make them autonomously swivelling at 30° intervals (factory settings 150°/150°).
180° rotated application is possible. Tilt adjustment screw according to load.

Material:
Aluminium

Colour:
RAL7016 (anthracite grey)

Weight:
Approx 4,9 Kg.

Characteristics:
Removable cover for installation


WeightVolume Code + N
Circa 4,9 Kg. Kg40103-02   Login
40102-02

40102-02


Wall joint

For support arm horizontal swivelling at 30° intervals (factory settings 90°/90°). 180° rotated application is possible. Tilt adjustment screw according to load.

Material: Aluminium

Colour: RAL7016 (anthracite grey)

Weight: Approx 4,1 Kg.

Characteristics: Removable cover for installation


WeightVolume Code + N
4,1 Kg40102-02   Login
40101-02

40101-02


Top mounted joint

For support arm horizontal swivelling at 30° intervals (factory settings 150°/150°).
180° rotated application is possible.
Tilt adjustment screw according to load.

Material: Aluminium

Colour: RAL7016 (anthracite grey)

Weight: Approx 3,2 Kg.

Characteristics: Removable cover for installation


WeightVolume Code + N
3,2 Kg40101-02   Login
